Ultrawide Monitor Arm for 17 inch to 49 inch Screens
The Ergox EA-MA6112BK is built for large ultrawide and curved monitors, holding one 17–49 inch screen up to 20kg. A heavy-duty tilt pivot keeps adjustments smooth even with big, heavy displays.
A quick-release VESA plate makes mounting simple. Some monitors, including large Samsung ultrawides, need the VESA adaptor supplied in the monitor box. Check for it before mounting.

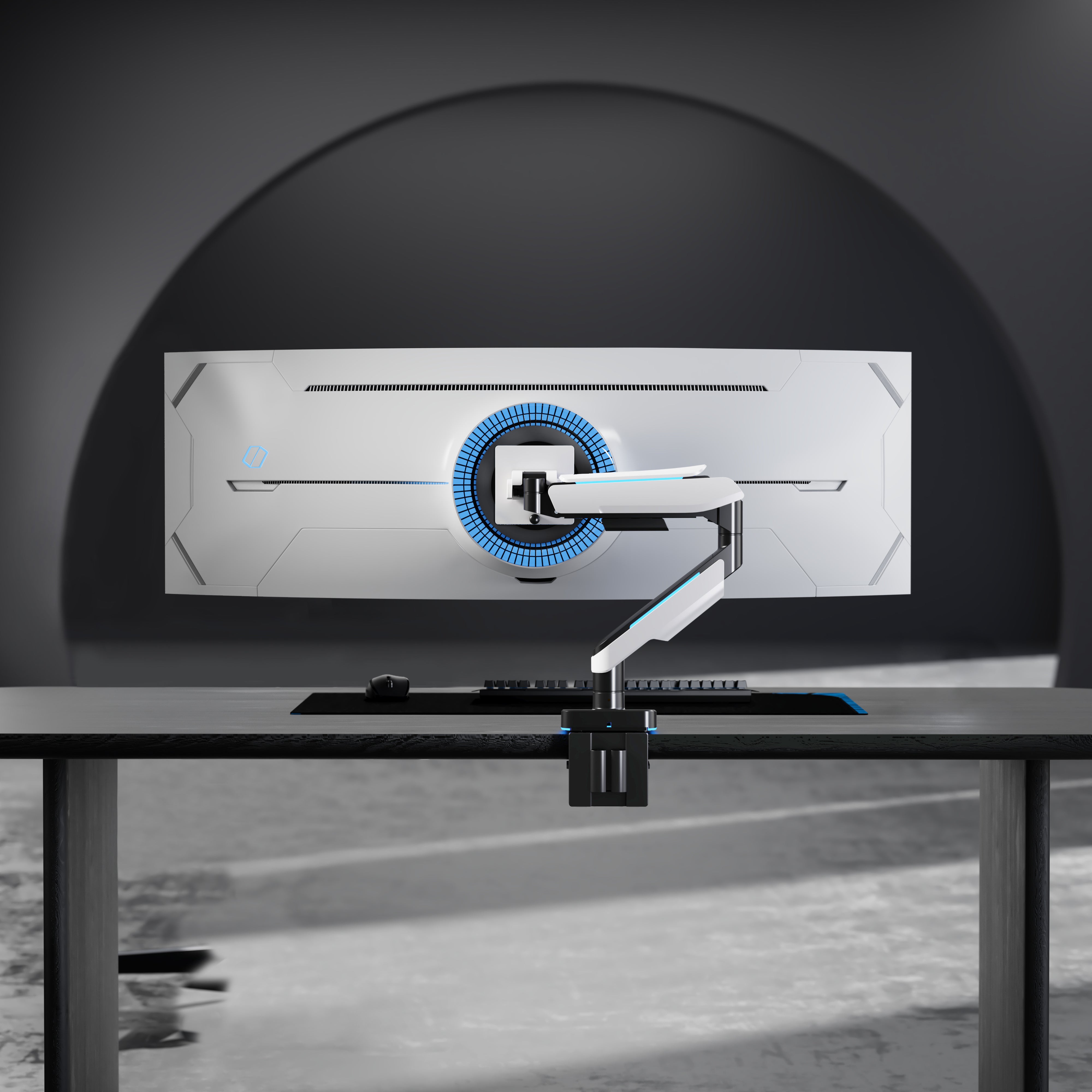

Built for Ultrawides
Holds one 17–49 inch flat or curved monitor up to 20kg, including 1000R curved screens.

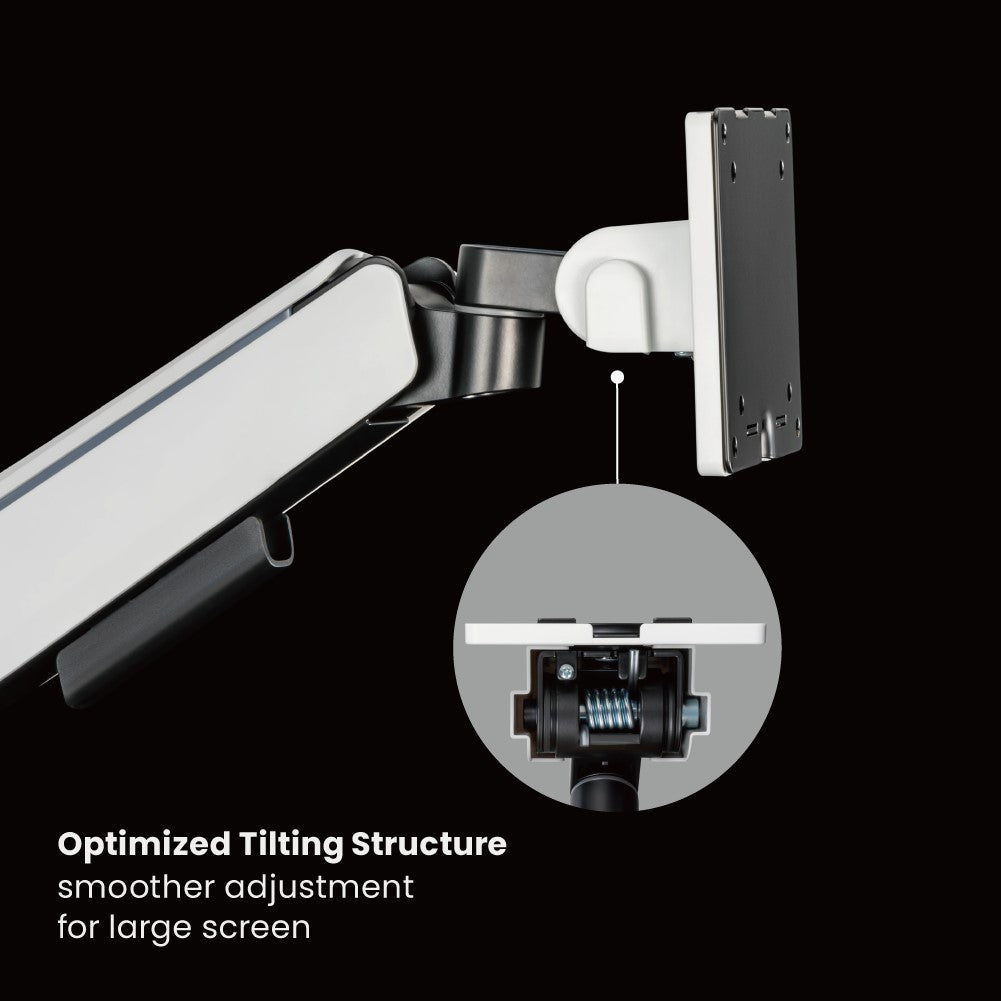

Heavy-Duty Tilt Pivot
Optimised tilt structure for smooth adjustment of large, heavy screens.

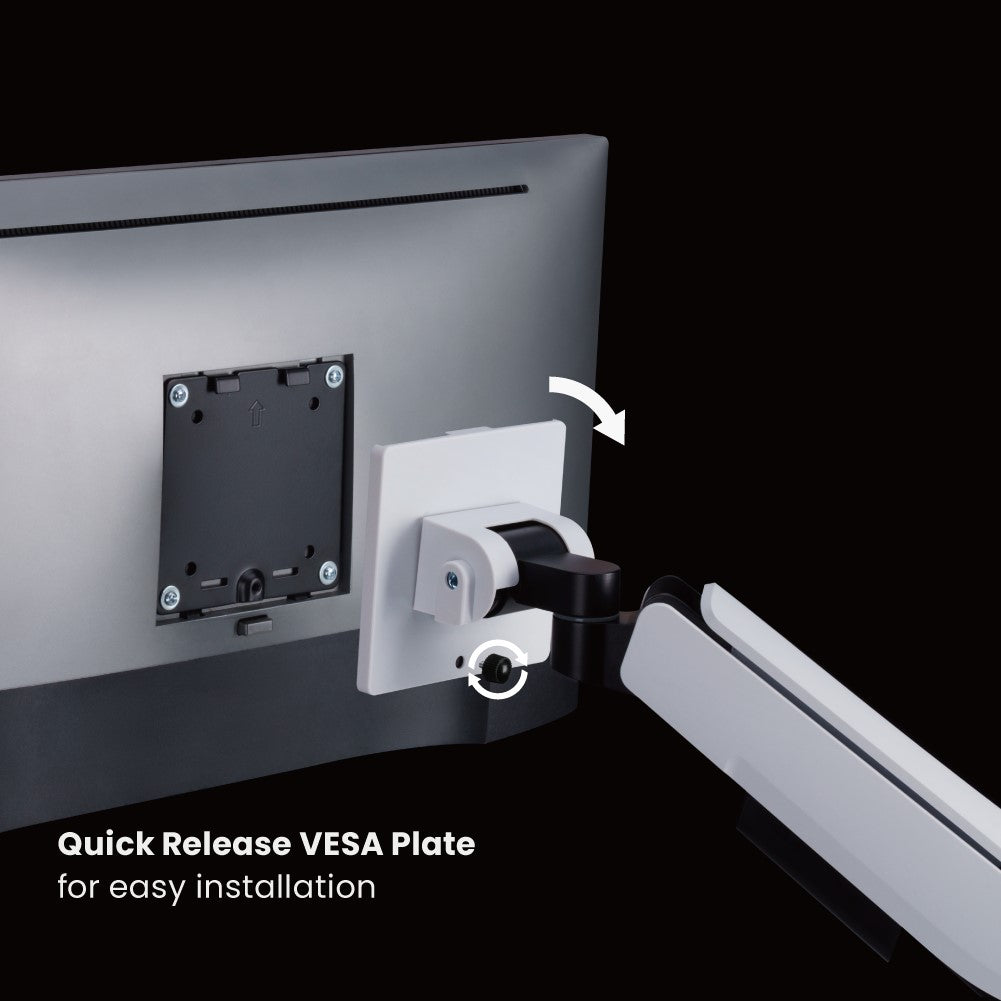

Quick-Release VESA
Detachable VESA plate for easy setup and removal.

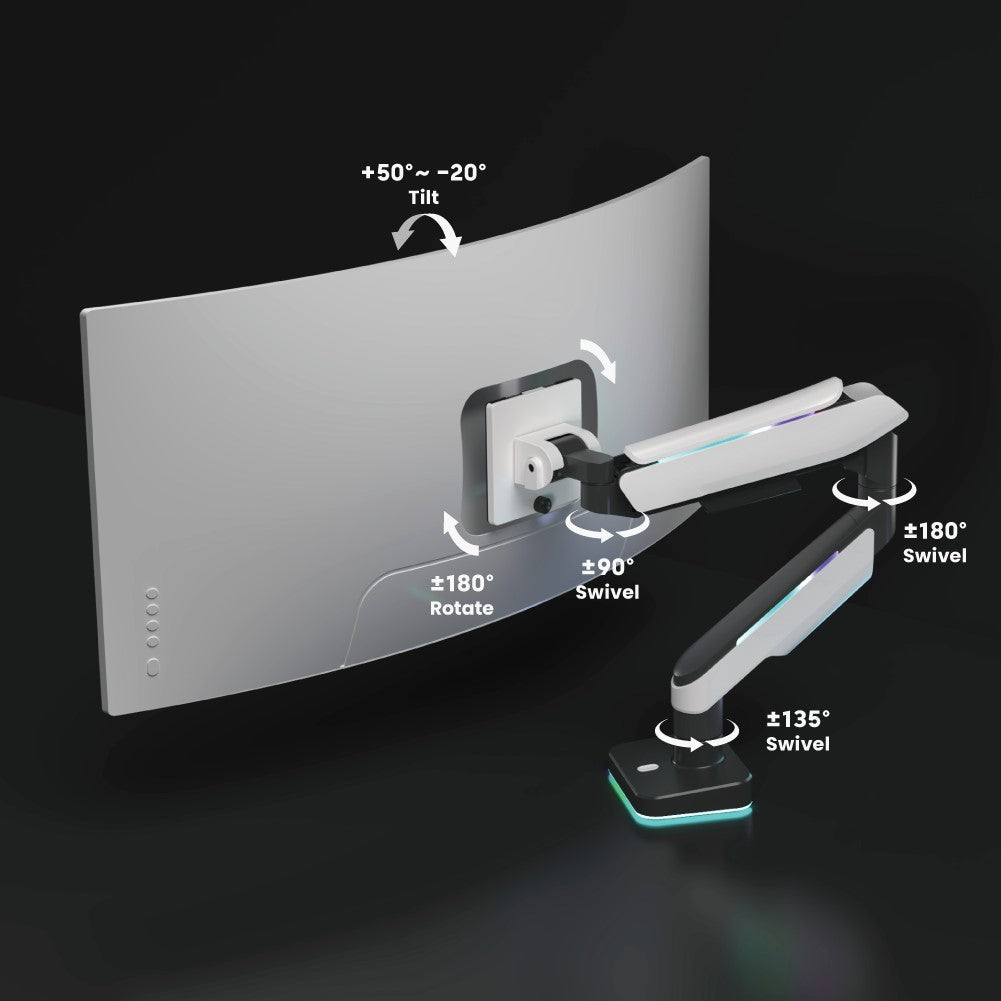

Full Range of Motion
Tilt +50° to -20°, swivel ±90°, rotate ±180°, up to 458mm extension.

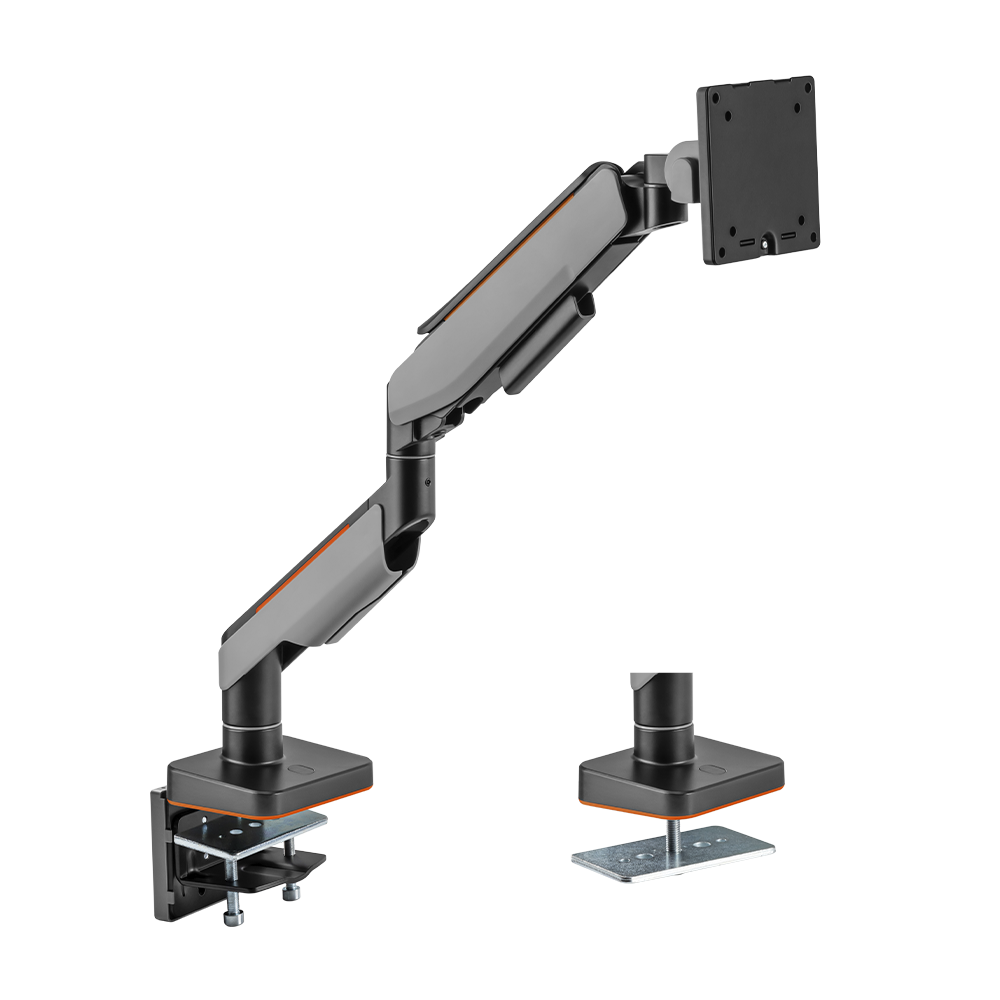

Clamp or Grommet
Fits desks 10–85mm thick (clamp) or 10–48mm (grommet).
Hidden Cables
Cables stay hidden under the arm for a clean setup.
Will It Fit My Monitor?
- Screen size: 17–49 inch, flat or curved.
- Screen weight: 2–20kg.
- VESA pattern: 75 x 75mm or 100 x 100mm.
- Desk thickness: clamp 10–85mm, grommet 10–48mm.
Not sure? Email [email protected] with your monitor model and we will confirm before you order.

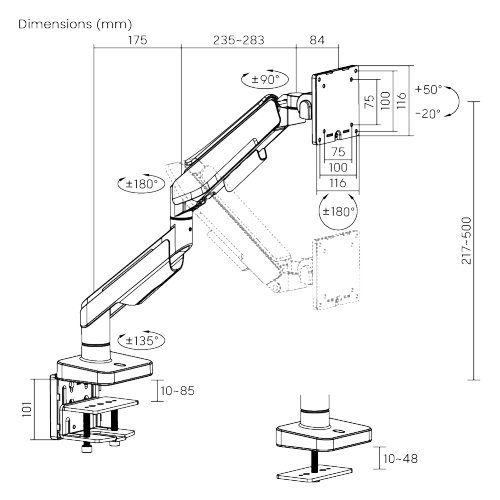

Specifications
| Product Category | Gas Spring Monitor Arm |
| Rank | Premium |
| Material | Aluminium, Plastic, Steel |
| Surface Finish | Powder Coating |
| Colour | Matte Black & Dark Grey |
| Dimensions | 138 x 553 x 659mm |
| Installation | Grommet, Clamp |
| Suggested Screen Size | 17–49 inch |
| Fit Curved Monitor | Yes |
| Screen Quantity | 1 |
| Weight Capacity | 2–20kg |
| VESA Compatible | 75x75, 100x100 |
| Tilt Range | +50° to -20° |
| Swivel Range | +90° to -90° |
| Screen Rotation | +180° to -180° |
| Arm Full Extension | 458mm |
| Desktop Thickness | Clamp 10–85mm, Grommet 10–48mm |
| Quick-Release VESA Plate | Yes |
| Cable Management | Yes |
| Warranty | 2 years |
Frequently Asked Questions
What screen sizes does this arm support?
It is designed for screens from 17 to 49 inches, including large curved and ultrawide panels. It holds one screen at a time and fits both flat and curved displays.
What is the maximum weight it can carry?
Up to 20 kg. Weigh your monitor without its stand before ordering, and leave some headroom rather than running at the limit.
Will it fit my desk?
The desk clamp suits desktops from 10 to 85 mm thick and the grommet mount suits 10 to 48 mm. Both are installed from above the desk, so there is no need to reach underneath.
Does it need a VESA adaptor?
The arm supplies standard 75 x 75 and 100 x 100 mm mounting plates. Some Samsung monitors ship with their own VESA mounting adaptor inside the monitor box, which is easy to overlook during setup. Keep it, because the arm attaches to it. If it has been misplaced, a compatible replacement is available separately.
How far does the arm reach?
The arm extends 458 mm from its base, which is enough to bring a large screen close for detail work or push it back for distance. Check the reach against your desk width before ordering.
