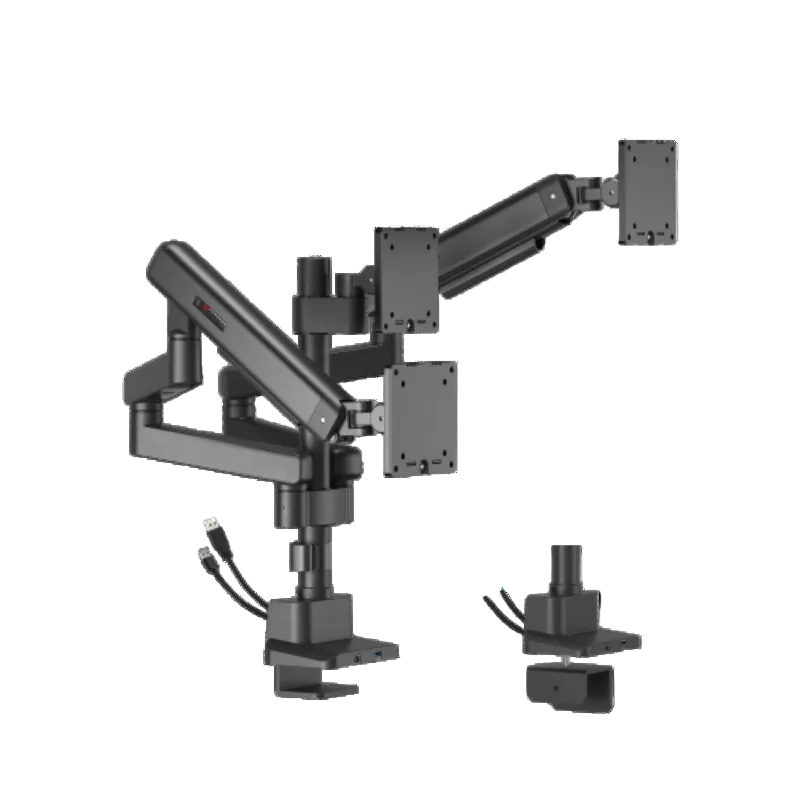

Premium Pole-Mounted Triple Monitor Arm with USB Ports
The Ergox EA-MA-10438UCP holds three 17–27 inch monitors up to 11kg each on a single pole. It suits editors, analysts and gamers who want a clean, clutter-free triple-screen setup.
The whole unit installs from above the desk, and snap-off plates on the base reveal USB-A 3.0 and USB-C ports for charging or data.
Three Screens
Holds three 17–27 inch flat or curved monitors, 2–11kg each.
USB-A & USB-C
Smart base with a USB 3.0 and a USB-C port behind snap-off plates.
Top-Side Install
Clamp or grommet, both installed from above the desk.
Tension Gauge
Mechanical spring with a built-in gauge for precise weight adjustment.
Full Range of Motion

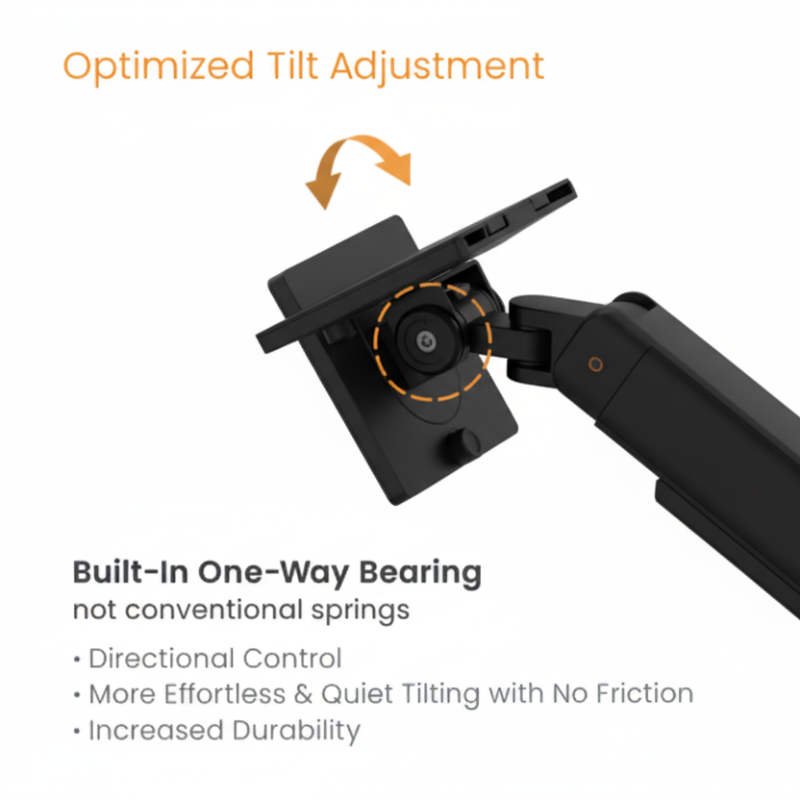

Tilt +75° to -45°, swivel ±90°, rotate ±180°, up to 691mm extension.

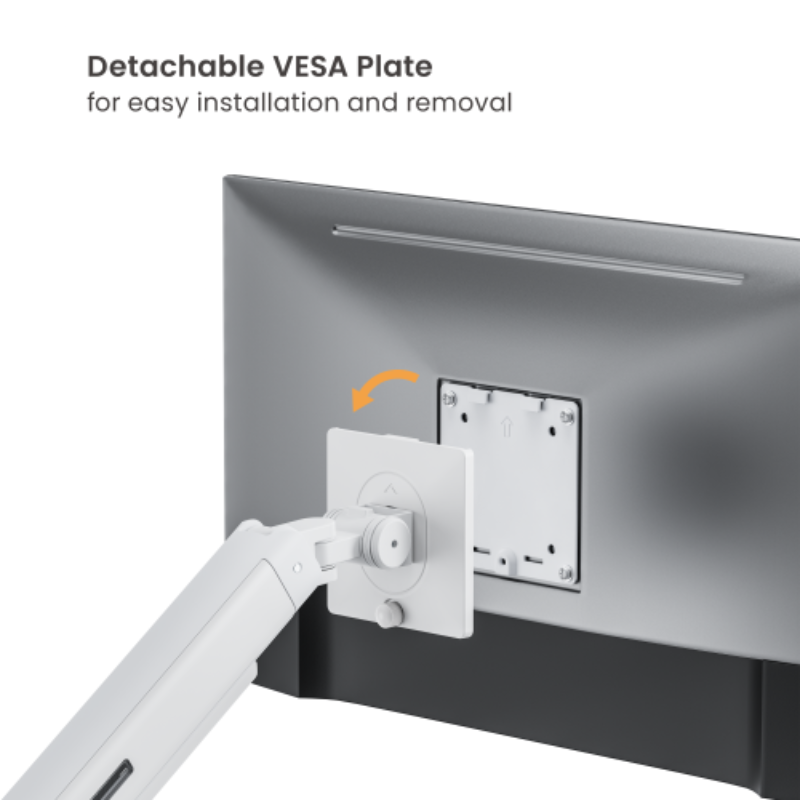

Quick-Release VESA
Snap monitors on and off in seconds.
Will It Fit My Monitor?
- Screen size: 17–27 inch, flat or curved.
- Screen weight: 2–11kg per screen.
- VESA pattern: 75 x 75mm or 100 x 100mm.
- Desk thickness: 10–50mm (clamp or grommet).
Not sure? Email info@ergox.com.au with your monitor model and we will confirm before you order.
Specifications
| Product Category | Mechanical Spring Monitor Arm |
| Rank | Premium |
| Material | Aluminium, Plastic, Steel |
| Surface Finish | Powder Coating |
| Colour | Fine Texture Black |

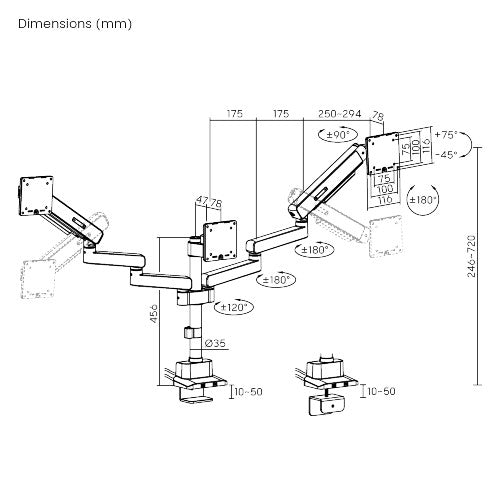

| Dimensions | 1410 x 164 x 800mm |
| Installation | Grommet, Clamp |
| Suggested Screen Size | 17–27 inch |
| Fit Curved Monitor | Yes |
| Screen Quantity | 3 |
| Weight Capacity (per screen) | 2–11kg |
| VESA Compatible | 75x75, 100x100 |
| Tilt Range | +75° to -45° |
| Swivel Range | +90° to -90° |
| Screen Rotation | +180° to -180° |
| Arm Full Extension | 691mm |
| Desktop Thickness | Clamp 10–50mm, Grommet 10–50mm |
| Quick-Release VESA Plate | Yes |
| Cable Management | Yes |
| USB Ports | 1 x USB 3.0, 1 x USB-C |
| Warranty | 2 years |
