Pickup only – we do not deliver this set
It is supplied in two cartons weighing 92.8kg in total, so it is collection from our Victorian warehouse only.
The cabinet carton alone is 1710 x 1060 x 130mm and 74.1kg. Please bring a ute, van or trailer, and a second pair of hands.
Motorised TV Lift Cabinet for 40 to 65 Inch Screens
The Ergox EA-WP2005M Motorised TV Lift Cabinet hides your television inside a two door media cabinet and raises it at the push of a button. When the screen is down the cabinet looks like furniture, so the room reads as a living space rather than a home theatre. Because of the size and weight of the cartons, this set is pickup only from our Victorian warehouse.
The lift is controlled by the included RF remote, the Tuya app, or voice through Amazon Alexa and Google Home, and a collision avoidance system stops movement the moment it senses an obstacle.
Hidden Until You Need It

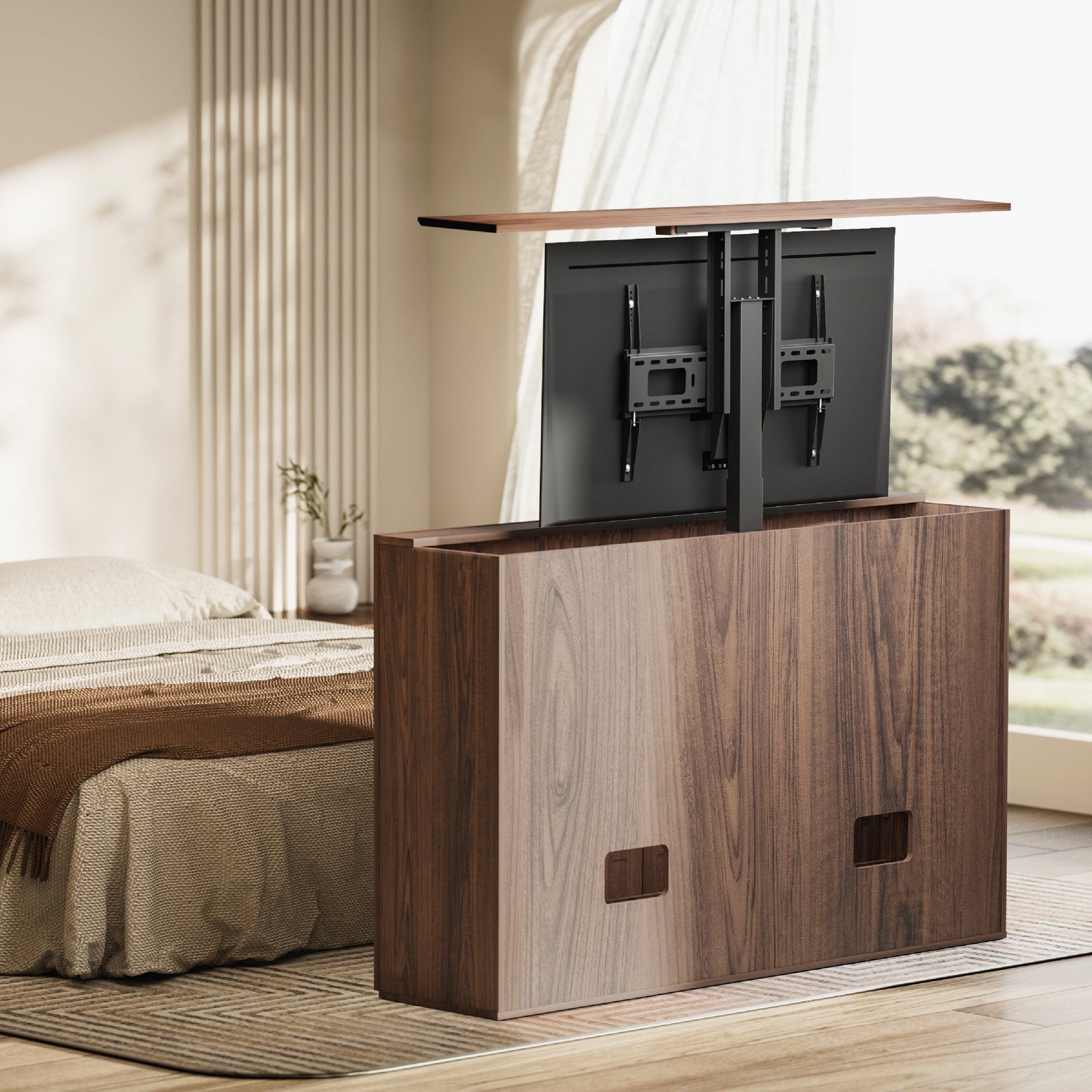

Press once and the screen rises smoothly out of the cabinet. Lower it and the room goes back to normal, with no television on show.

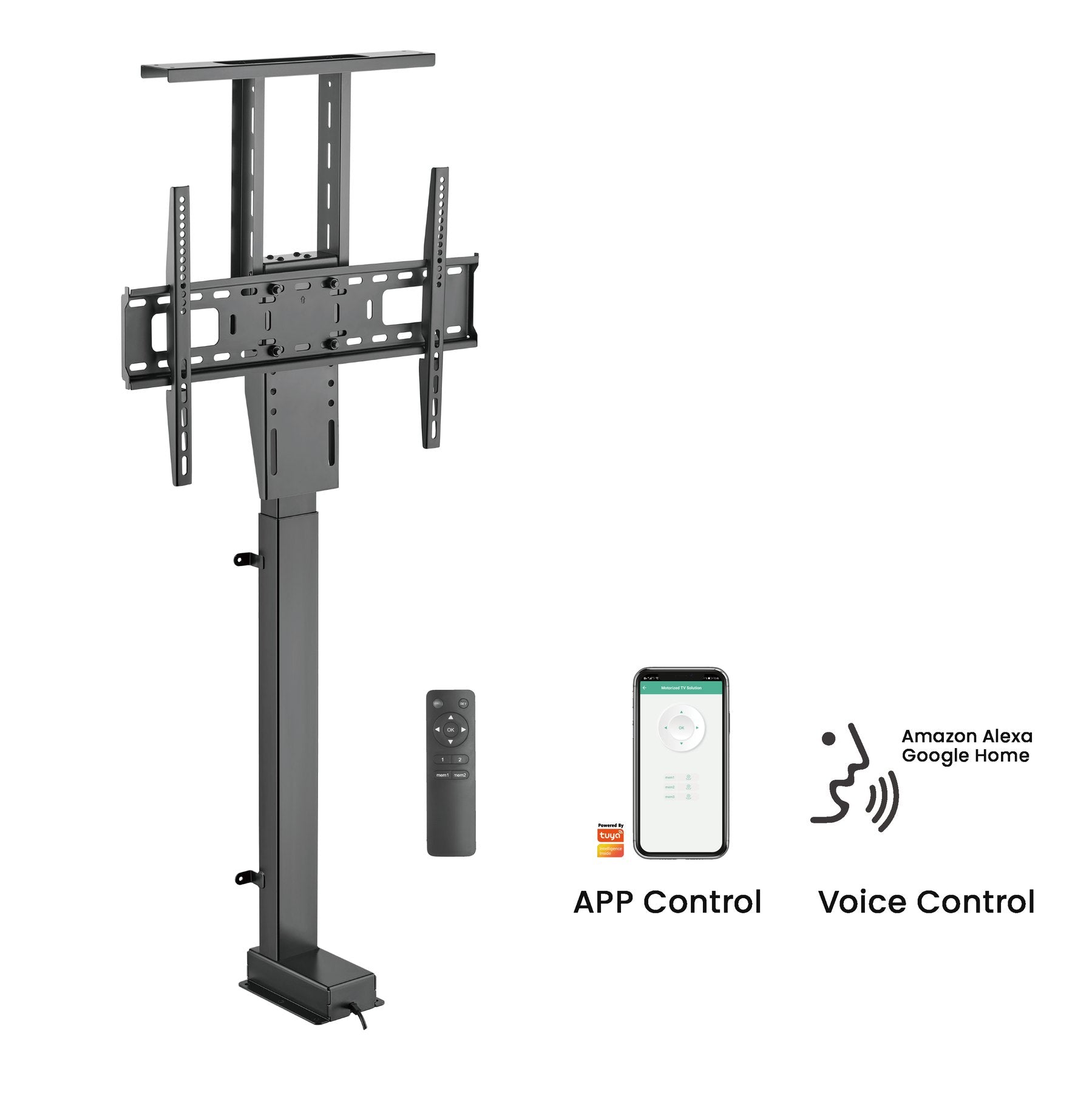

Remote, App or Voice
Control the lift with the included RF remote, the Tuya app on your phone, or a voice command through Amazon Alexa or Google Home.
Collision Avoidance
The lift stops automatically if it meets an obstacle on the way up or down, protecting the screen and anything close to it.
Quiet Steel and Aluminium Column
A powder coated steel and aluminium lift rated to 60kg, with low decibel operation under 50dB and a detachable VESA plate.

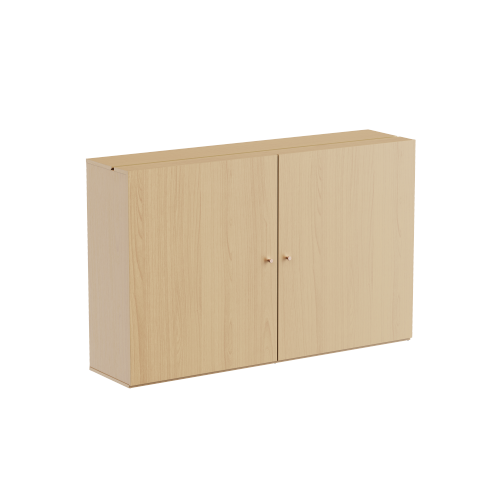

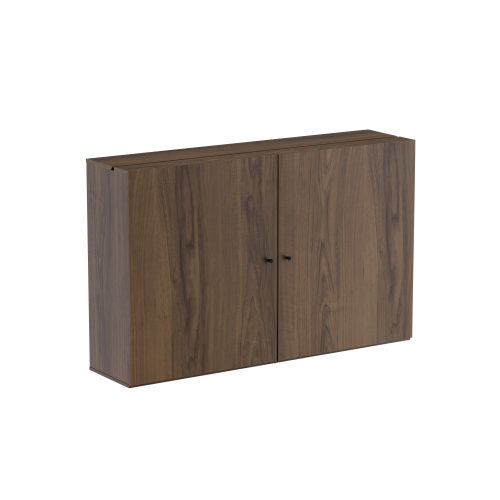

Walnut or Beech Finish

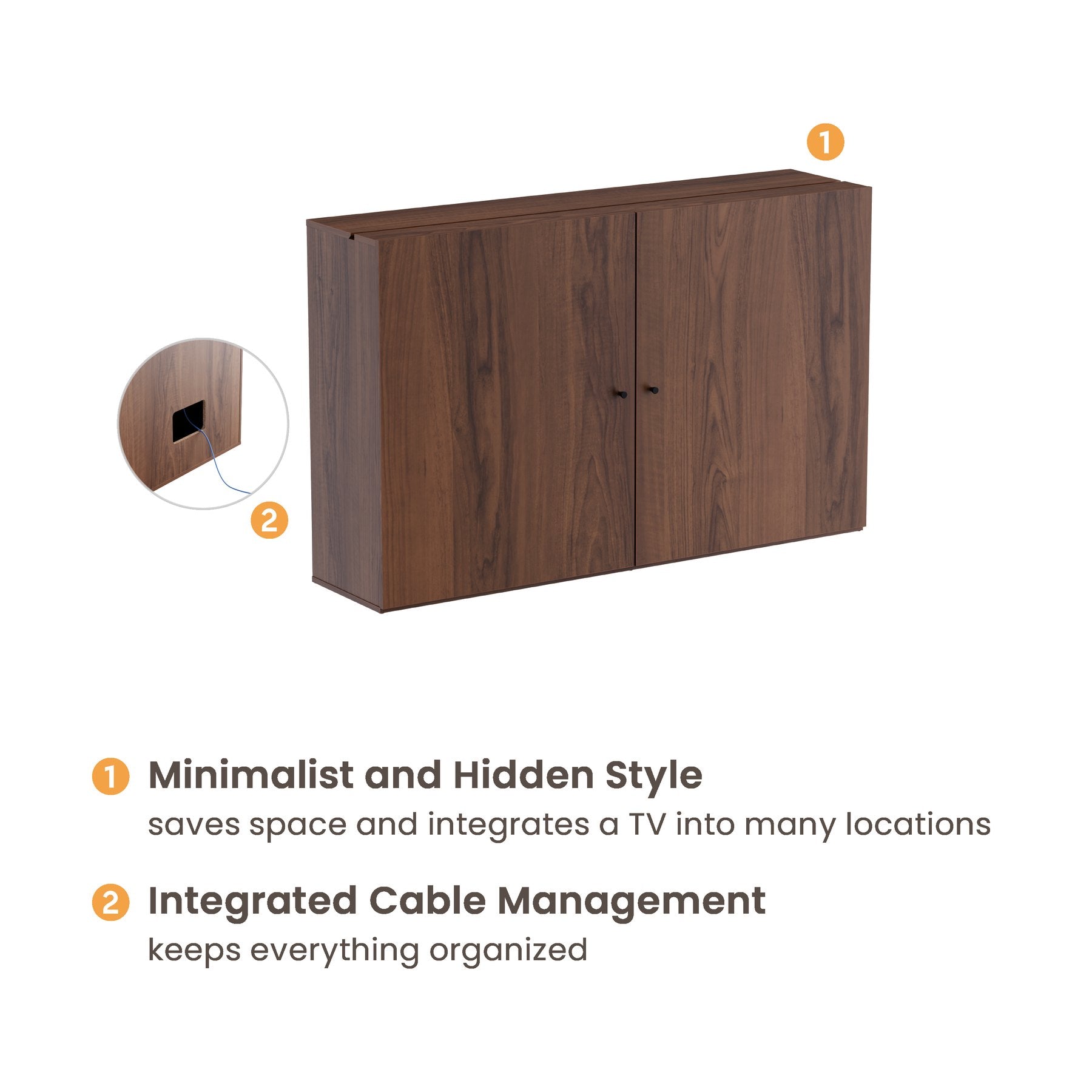

Choose a walnut or beech melamine laminate cabinet with integrated cable management, keeping power and HDMI leads out of sight.
Two Levels of Height Adjustment

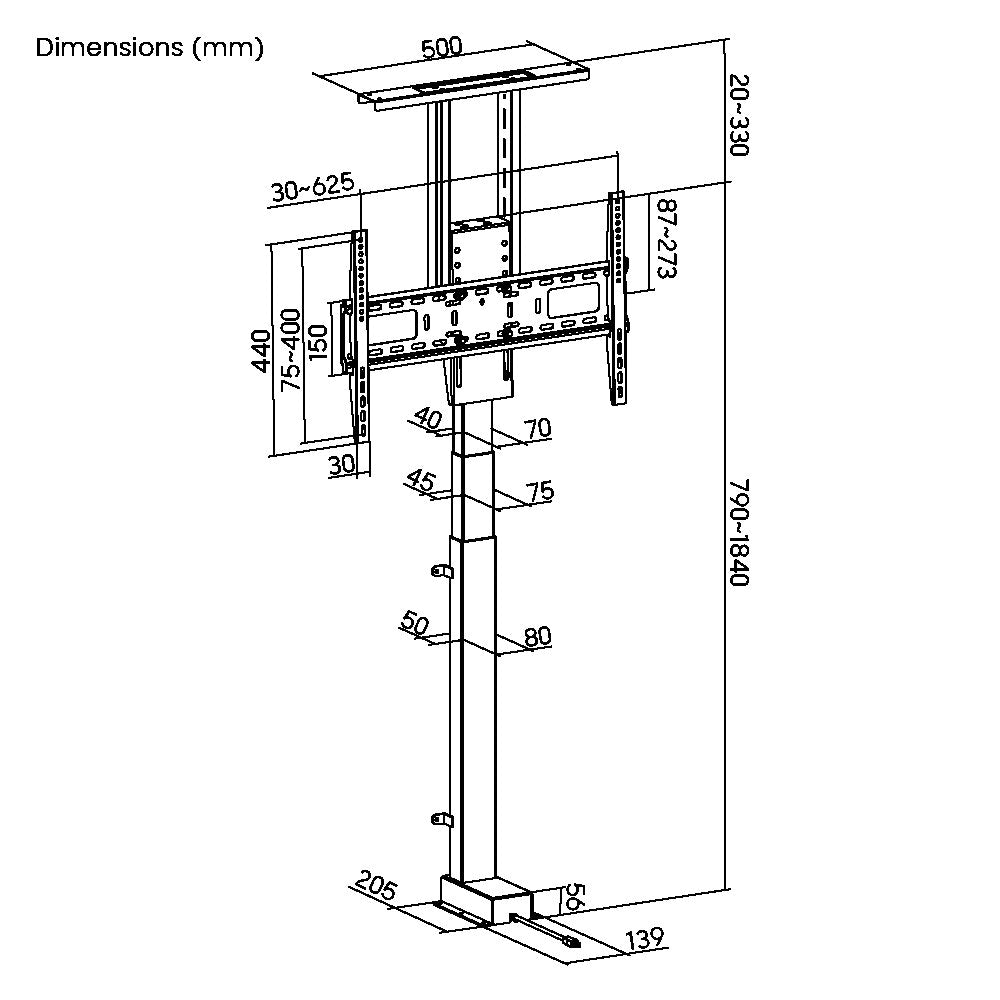

The column gives 810 to 2170mm of motorised travel, and the VESA plate adds 87 to 273mm of fine adjustment on top of that.
Specifications
| Product Category | Motorised TV Lift Cabinet |
| Model | Ergox EA-WP2005M |
| Cabinet Material | Particle board with melamine decorative laminate |
| Lift Material | Powder coated steel, aluminium and plastic |
| Bracket Arm Thickness | 2mm cold rolled sheet |
| VESA Panel Thickness | 2mm cold rolled sheet |
| Surface Finish | Powder coating |
| Cabinet Finish | Walnut or Beech melamine laminate |
| Lift Colour | Matte Black |

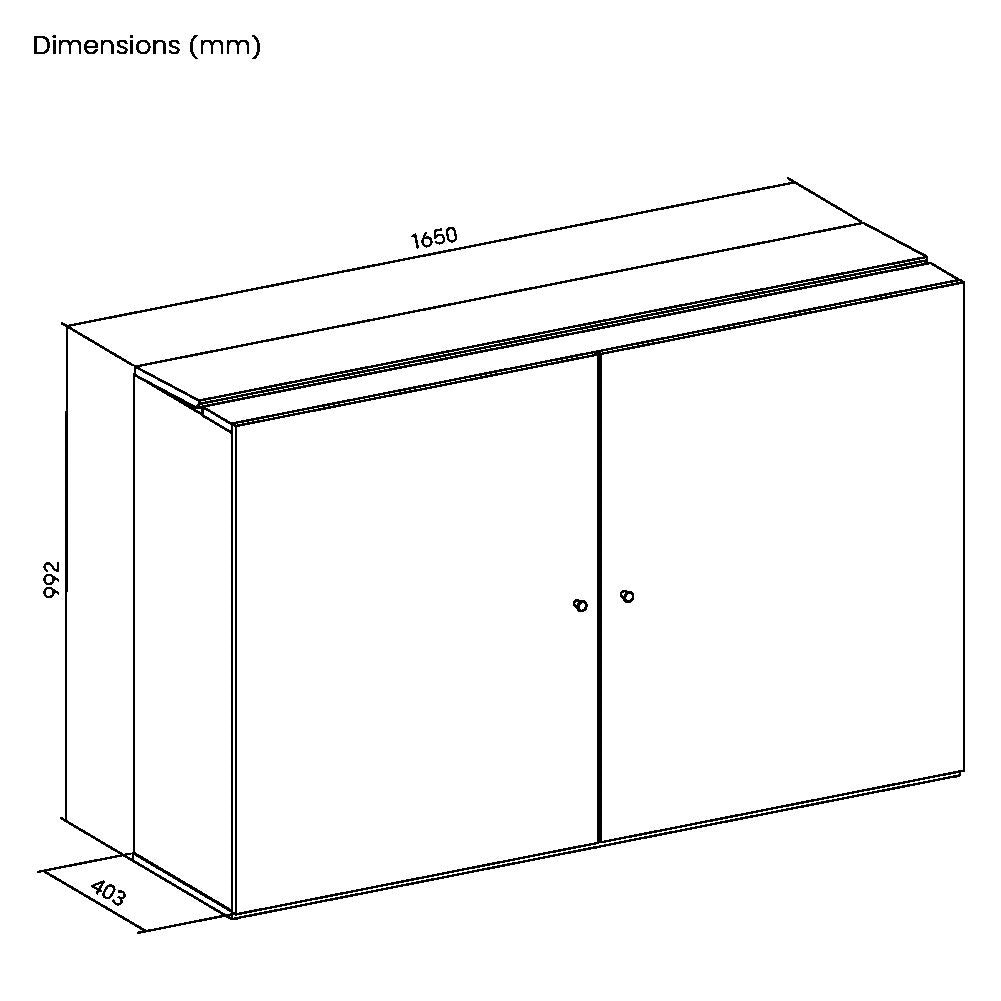

| Cabinet Dimensions | 1650 x 430 x 992mm |
| Lift Dimensions | 205 x 660 x 810 to 2170mm |
| Fit Screen Size | 40 inch to 65 inch in this cabinet |
| Screen Weight Capacity | Up to 20kg |
| Lift Rated Capacity | 60kg |
| Motor Noise | Low decibel operation, under 50dB |
| VESA Compatible | 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 350x350, 400x400, 600x300, 600x400 |
| Max Mounting Hole | 600 x 400mm |
| Profile | 120mm |
| Base Type | Pedestal |
| Installation | Inside the cabinet |
| Cabinet Top Panel | Attaches to the lift column and seals the cabinet when lowered |
| Controller Type | RF remote as standard, plus Tuya app and voice control |
| Collision Avoidance | Yes |
| Cable Management | Yes |
| Power Supply | AC 100-240V 50/60Hz input, DC 29V 1.8A output |
| Power Cord Length | 1.5m |
| Carton 1 - Lift | 870 x 310 x 210mm, 18.7kg |
| Carton 2 - Cabinet | 1710 x 1060 x 130mm, 74.1kg |
| Total Shipped Weight | 92.8kg across 2 cartons |
| Delivery Method | Pickup only, collected from our Victorian warehouse |
| Warranty | 2 years |
Will It Fit My TV?
- Screen size: 40 inch to 65 inch in this cabinet. The cabinet sets the 65 inch maximum. The lift itself is rated from 37 inch, but its smallest supported mounting pattern is 200 x 200mm, which in practice sets the floor at around 40 inch.
- Screen weight: up to 20kg. This is the cabinet rating and it is the limit that applies. Weigh your TV without its stand and leave some headroom, because a 65 inch screen is often close to that.
- VESA mounting pattern: from 200 x 200mm up to 600 x 400mm. Curved screens are supported as well as flat ones.
- Installation type: this lift is designed to be mounted inside a cabinet. It is not a ceiling or wall mount. If you want a screen that drops down from above, email us and we will point you to the right model.
- Not sure? Email info@ergox.com.au with your TV model number and we will confirm before you order.
What's In The Box
- 1 x TV cabinet in your chosen finish
- 1 x Smart motorised TV lift with detachable VESA plate
- 1 x RF remote control
- Mounting hardware and fixings
Installation
- Inside the cabinet: the lift mounts inside the cabinet and raises the screen through the top. The cabinet top panel attaches to the lift column, so the cabinet seals itself when the screen is lowered.
- Adjustment: mounting holes along the column let you set where the screen sits, so you can fine tune the finished height to suit the room.
- Power: AC 100-240V input with a 1.5m cord, so a standard Australian 240V outlet is suitable.
Pickup & Returns
- Pickup only: this set cannot be delivered. It is supplied in two cartons totalling 92.8kg, so collection is from our Victorian warehouse.
- Bring a vehicle: the cabinet carton is 1710 x 1060 x 130mm and 74.1kg on its own, so a ute, van or trailer and a second pair of hands are recommended. The lift carton is 870 x 310 x 210mm and 18.7kg.
- Arranging collection: we email you after your order to confirm a collection time and the warehouse address.
- Before you order: check the screen size and weight limits above, and read our returns policy.
Frequently Asked Questions
Do you deliver this cabinet?
No. The set is supplied in two cartons weighing 92.8kg in total, so it is pickup only from our Victorian warehouse and we do not offer delivery. The cabinet carton alone is 1710 x 1060 x 130mm and 74.1kg, so please bring a ute, van or trailer. We email you after your order to arrange a collection time.
What TV sizes fit this cabinet?
The cabinet is built for screens from 40 to 65 inches. The cabinet sets the maximum at 65 inch. The lift inside it is rated from 37 inch, but its smallest supported mounting pattern is 200 x 200mm, which in practice means 40 inch and above.
What is the maximum TV weight?
Up to 20 kg. This is the cabinet rating and it is the limit that applies. The lift itself is rated higher at 60 kg, so the cabinet is the limiting part. Weigh your television without its stand before ordering and leave some headroom.
How do I control the lift?
An RF remote control is included. You can also control the lift from the Tuya app on your phone, or by voice through Amazon Alexa and Google Home, including raising, stopping and lowering the screen. The motor runs at low decibel, under 50dB.
Which VESA patterns does it support?
The detachable VESA plate covers 200 x 200 mm up to 600 x 400 mm, including 200 x 300, 300 x 300, 400 x 400 and 600 x 200 mm. Curved screens are supported as well as flat ones.
What happens if something is in the way?
The lift has an anti collision function. If it meets an obstacle while travelling up or down it stops automatically, which protects the screen and anything close to the cabinet.
Can it be mounted in a ceiling instead of a cabinet?
No. This lift is designed to be installed inside a cabinet, and the cabinet top panel attaches to the lift column so the cabinet seals when the screen is lowered. If you need a screen that drops down from a ceiling, contact us and we will point you to a lift that suits that installation.
Are the cabinet and lift a matched pair?
Yes. The supplied lift is the model the cabinet was designed around, so the two fit together as a set.
